Overview

CYAML is an abstraction layer that lives on top of the libyaml library. The libyaml is used to parse a YAML stream. It provides events as it parses the stream one token at a time. These events are handled by CYAML and an intermediary structure of the parsed yaml stream is built. This intermediary structure tree is then stored and accessed by the lnetconfig library. CYAML provides an API to traverse the intermediary structure tree. It also provides APIs to build the intermediary structure tree. It can then convert that into a yaml text block.

Intermediary Structure

enum cYAML_object_type {
        CYAML_TYPE_FALSE = 0,
        CYAML_TYPE_TRUE,
        CYAML_TYPE_NULL,
        CYAML_TYPE_NUMBER,
        CYAML_TYPE_STRING,
        CYAML_TYPE_ARRAY,
        CYAML_TYPE_OBJECT
};

struct cYAML {
        /* next/prev allow you to walk array/object chains. */
        struct cYAML *cy_next, *cy_prev;
        /* An array or object item will have a child pointer pointing
           to a chain of the items in the array/object. */
        struct cYAML *cy_child;
        /* The type of the item, as above. */
        enum cYAML_object_type cy_type;

        /* The item's string, if type==CYAML_TYPE_STRING */
        char *cy_valuestring;
        /* The item's number, if type==CYAML_TYPE_NUMBER */
        int cy_valueint;
        /* The item's number, if type==CYAML_TYPE_NUMBER */
        double cy_valuedouble;
        /* The item's name string, if this item is the child of,
           or is in the list of subitems of an object. */
        char *cy_string;
        /* user data which might need to be tracked per object */
        void *cy_user_data;
};

FSM

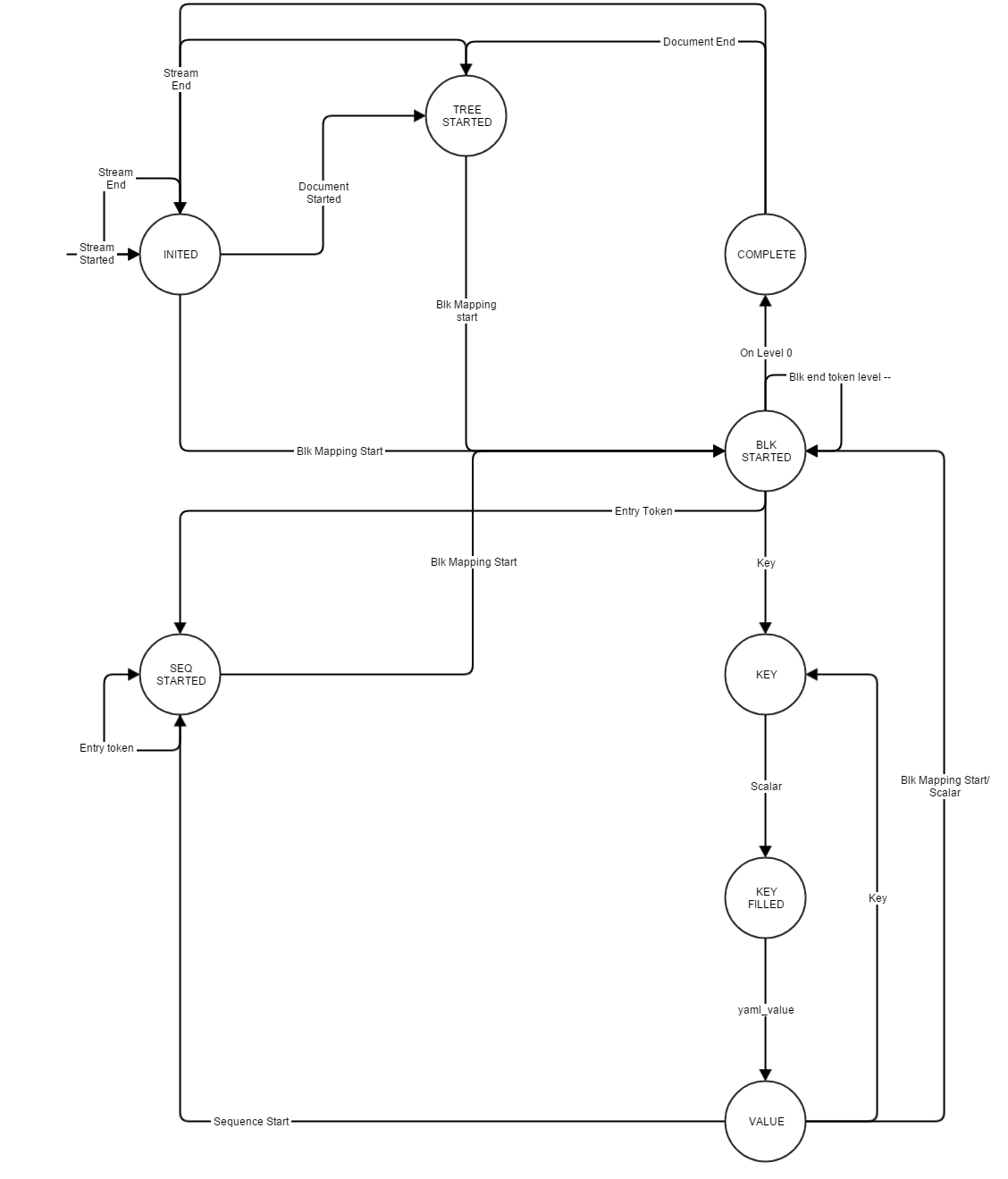

In order to correctly build the intermediary yaml structure tree, CYAML maintains an FSM.

CYAML FSM

APIs

Refer to the code for more details, but below are the external APIs provided by CYAML

/*
 * cYAML_build_tree
 *   Build a tree representation of the YAML formatted text passed in.
 *
 *   yaml_file - YAML file to parse and build tree representation
 *   yaml_blk - blk of YAML.  yaml_file takes precedence if both
 *   are defined.
 *   yaml_blk_size - length of the yaml block (obtained via strlen)
 */
struct cYAML *cYAML_build_tree(char *yaml_file, const char *yaml_blk,
                                size_t yaml_blk_size,
                                struct cYAML **err_str, bool debug);

/*
 * cYAML_print_tree
 *   Print the textual representation of a YAML tree to stderr
 *
 *   node - Node where you want to start printing
 */
void cYAML_print_tree(struct cYAML *node);

/*
 * cYAML_print_tree2file
 *   Print the textual representation of a YAML tree to file
 *
 *   f - file to print to
 *   node - Node where you want to start printing
 */
void cYAML_print_tree2file(FILE *f, struct cYAML *node);

/*
 * cYAML_free_tree
 *   Free the cYAML tree returned as part of the cYAML_build_tree
 *
 *   node - root of the tree to be freed
 */
void cYAML_free_tree(struct cYAML *node);

/*
 * cYAML_get_object_item
 *   Returns the cYAML object which key correspods to the name passed in
 *   This function searches only through the current level.
 *
 *   parent - is the parent object on which you want to conduct the search
 *   name - key name of the object you want to find.
 */
struct cYAML *cYAML_get_object_item(struct cYAML *parent,
                                    const char *name);

/*
 * cYAML_get_next_seq_item
 *   Returns the next item in the YAML sequence.  This function uses the
 *   itm parameter to keep track of its position in the sequence.  If the
 *   itm parameter is reset to NULL between calls that resets and returns
 *   the first item in the sequence.
 *   This function returns NULL when there are no more items in the
 *   sequence.
 *
 *   seq - is the head node of the YAML sequence
 *   itm - [OUT] next sequence item to continue looking from next time.
 *
 */
struct cYAML *cYAML_get_next_seq_item(struct cYAML *seq,
                                      struct cYAML **itm);

/*
 * cYAML_is_seq
 *   Returns 1 if the node provided is an ARRAY 0 otherwise
 *
 *   node - the node to examine
 *
 */
bool cYAML_is_sequence(struct cYAML *node);

/*
 * cYAML_find_object
 *   Returns the cYAML object which key correspods to the name passed in
 *   this function searches the entire tree.
 *
 *   root - is the root of the tree on which you want to conduct the search
 *   name - key name of the object you want to find.
 */
struct cYAML *cYAML_find_object(struct cYAML *root, const char *key);

/*
 * cYAML_clean_usr_data
 *   walks the tree and for each node with some user data it calls the
 *   free_cb with the user data as a parameter.
 *
 *   node: node to start the walk from
 *   free_cb: cb to call to cleanup the user data
 */
void cYAML_clean_usr_data(struct cYAML *node,
                          cYAML_user_data_free_cb free_cb);

/*
 * cYAML_create_object
 *  Creates a CYAML of type OBJECT
 *
 *  parent - parent node
 *  key - node key
 */
struct cYAML *cYAML_create_object(struct cYAML *parent, char *key);

/*
 * cYAML_create_seq
 *  Creates a CYAML of type ARRAY
 *  Once this is created, more sequence items can be added.
 *
 *  parent - parent node
 *  key - node key
 */
struct cYAML *cYAML_create_seq(struct cYAML *parent, char *key);

/*
 * cYAML_create_object
 *  Create a sequence item, which can have more entites added underneath
 *  it
 *
 *  parent - parent node
 */
struct cYAML *cYAML_create_seq_item(struct cYAML *seq);

/*
 * cYAML_create_string
 *   Creates a cYAML node of type STRING
 *
 *   parent - parent node
 *   key - node key
 *   value - value of node
 */
struct cYAML *cYAML_create_string(struct cYAML *parent, char *key,
                                  char *value);

/*
 * cYAML_create_string
 *   Creates a cYAML node of type STRING
 *
 *   parent - parent node
 *   key - node key
 *   value - value of node
 */
struct cYAML *cYAML_create_number(struct cYAML *parent, char *key,
                                  double value);

/*
 * cYAML_insert_sibling
 *   inserts one cYAML object as a sibling to another
 *
 *   root - root node to have a sibling added to
 *   sibling - sibling to be added
 */
void cYAML_insert_sibling(struct cYAML *root, struct cYAML *sibling);

/*
 * cYAML_insert_child
 *   inserts one cYAML object as a child to another
 *
 *   parent - parent node to have a child added to
 *   child - child to be added
 */
void cYAML_insert_child(struct cYAML *parent, struct cYAML *node);

/*
 * cYAML_build_error
 *   Build a YAML error message given:
 *
 *   rc - return code to add in the error
 *   seq_no - a sequence number to add in the error
 *   cmd - the command that failed.
 *   entity - command entity that failed.
 *   err_str - error string to add in the error
 *   root - the root to which to add the YAML error
 */
void cYAML_build_error(int rc, int seq_no, char *cmd,
                        char *entity, char *err_str,
                        struct cYAML **root);
