O2IBLND

Overview

There are two types of events to account for:

  1. Events on the RDMA device itself
  2. Events on the cm_id

Both events should be monitored because they provide information on the health of the device and connection respectively.

ib_register_event_handler() can be used to register a handler to handle events of type 1.

a cm_callback can be register with the cm_id to handle RMDA_CM events.

There is a group of events which indicate a fatal error

RDMA Device Events

Below are the events that could occur on the RDMA device. Highlighted in BOLD RED are the events that should be handled for health purposes.

Communication Events

Below are the events that could occur on a connection. Highlighted in BOLD RED are the events that should be handled for health purposes.

Health Handling

Handling Asynchronous Events

Handling Errors on Sends

Handling Timeout

This is probably the trickiest situation. Timeout could occur because of network congestion, or because the remote side is too busy, or because it's dead, or hung, etc.

Timeouts are being kept in the LND (o2iblnd) on the transmits. Every transmit which is queued is assigned a deadline. If it expires then the connection on which this transmit is queued, is closed.

peer_timout can be set in routed and non-routed scenario, which provides information on the peer.

Timeouts are also being kept at ptlrpc. These are rpc timeouts.

Refer to section 32.5 in the manual for a description of how RPC timeouts work.

Also refer to section 27.3.7 for LNet Peer Health information.

Given the presence of various timeouts, adding yet another timeout on the message, will further complicate the configuration, and possibly cause further hard to debug issues.

One option to consider is to use the peer_timout feature to recognize when peer_nis are down, and update the peer_ni health information via this mechanism. And let the LND and RPC timeouts take care of further resends.

High Level Design

Callback Mechanism

[Olaf: bear in mind that currently the LND already reports status to LNet through lnet_finalize()]

enum lnet_error_type {
	LNET_LOCAL_NI_DOWN, /* don't use this NI until you get an UP */
	LNET_LOCAL_NI_UP, /* start using this NI */
	LNET_LOCAL_NI_SEND_TIMOUT, /* demerit this NI so it's not selected immediately, provided there are other healthy interfaces */
	LNET_PEER_NI_ADDR_ERROR, /* The address for the peer_ni is wrong. Don't use this peer_NI */
	LNET_PEER_NI_UNREACHABLE, /* temporarily don't use the peer NI */
	LNET_PEER_NI_CONNECT_ERROR, /* temporarily don't use the peer NI */
	LNET_PEER_NI_CONNECTION_REJECTED /* temporarily don't use the peer NI */
};

Timeout Handling

LND TX Timeout

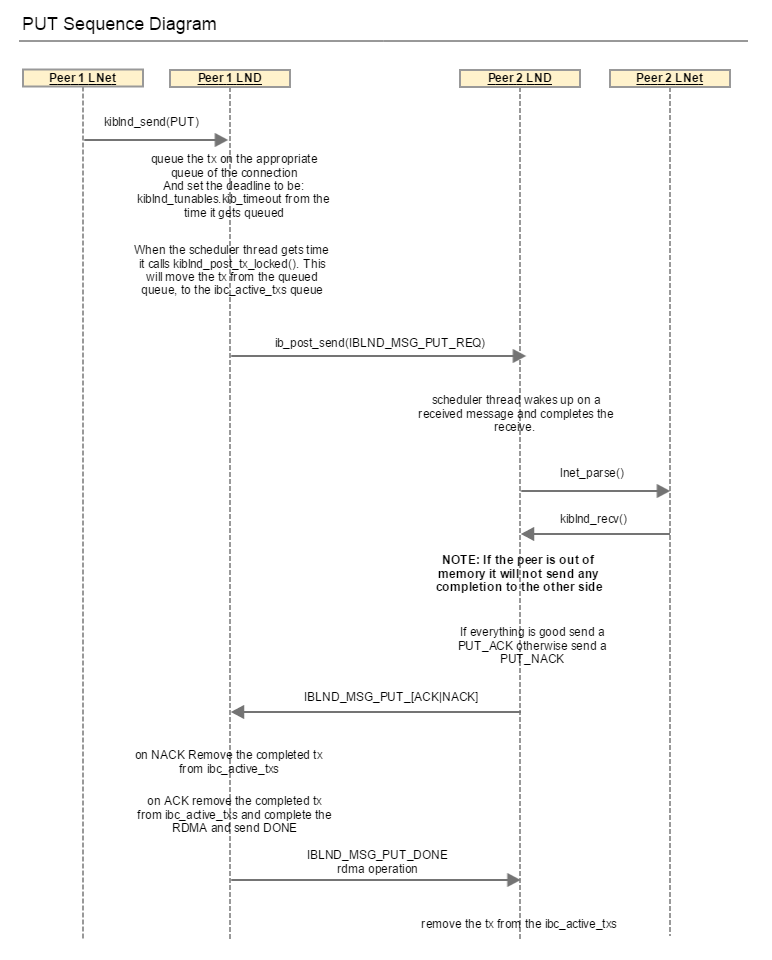

PUT

As shown in the above diagram whenever a tx is queued to be sent or is posted but haven't received confirmation yet, the tx_deadline is still active. The scheduler thread checks the active connections for any transmits which has passed their deadline, and then it closes those connections and notifies LNet via lnet_notify().

The tx timeout is cancelled when in the call kiblnd_tx_done(). This function checks 3 flags: tx_sending, tx_waiting and tx_queued. If all of them are 0 then the tx is closed as completed. The key flag to note is tx_waiting. That flag indicates that the tx is waiting for a reply. It is set to 1 in kiblnd_send, when sending the PUT_REQ or GET_REQ. It is also set when sending the PUT_ACK. All of these messages expect a reply back. When the expected reply is received then tx_waiting is set to 0 and kiblnd_tx_done() is called, which eventually cancels the tx_timeout, by basically removing the tx from the queues being checked for the timeout.

The notification in the LNet layer that the connection has been closed can be used by MR to attempt to resend the message on a different peer_ni.

<TBD: I don't think that LND attempts to automatically reconnect to the peer if the connection gets torn down because of a tx_timeout.>

TX timeout is exactly what we need to determine if the message has been transmitted successfully to the remote side. If it has not been transmitted successfully we can attempt to resend it on different peer_nis until we're either successful or we've exhausted all of the peer_nis.

The reason for the TX timeout is also important:

  1. TX timeout can be triggered because the TX remains on one of the outgoing queues for too long. This would indicate that there is something wrong with the local NI. It's either too congested or otherwise problematic. This should result in us trying to resend using a different local NI but possibly to the same peer_ni.
  2. TX timeout can be triggered because the TX is posted via (ib_post_send()) but it has not completed. In this case we can safely conclude that the peer_ni is either congested or otherwise down. This should result in us trying to resent to a different peer_ni, but potentially using the same local NI.

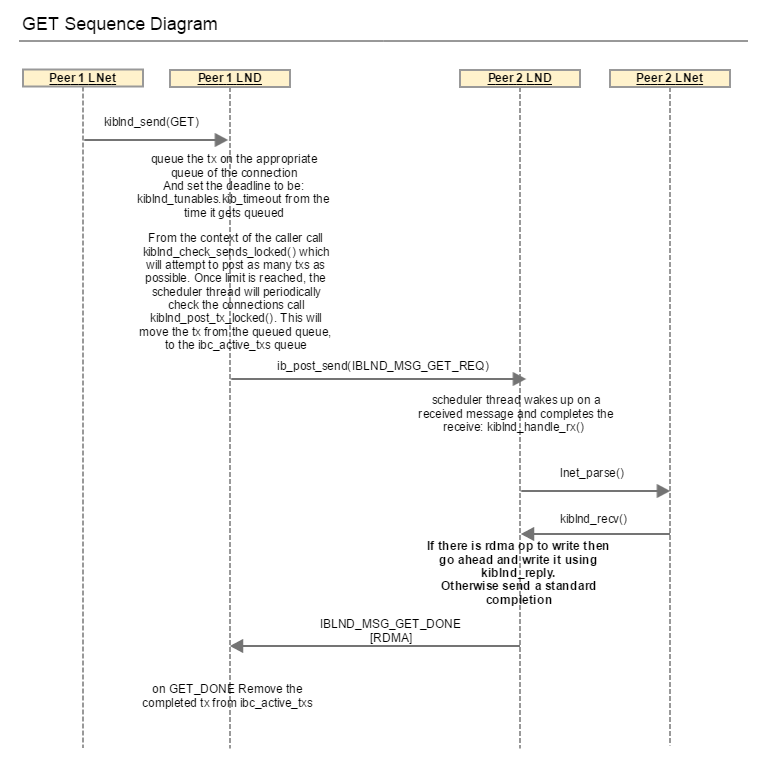

GET

After the completion of an o2iblnd tx ib_post_send(), a completion event is added to the completion queue. This triggers kiblnd_complete to be called. If this is an IBLND_WID_TX then kiblnd_tx_complete() is called, which calls kiblnd_tx_done() if the tx is not sending, waiting or queued. In this case the tx_timeout is closed.

In summary, the tx_timeout serves to ensure that messages which do not require an explicit response from the peer are completed on the tx event added by M|OFED to the completion queue. And it also serves to ensure that any messages which require an explicit reply to be completed receive that reply within the tx_timout.

PUT and GET in Routed Configuration

When a node receives a PUT request, the O2IBLND calls lnet_parse() to deal with it. lnet_parse() calls lnet_parse_put(), which matches the MD and initiates a receive. This ends up calling into the LND, kiblnd_recv(), which would send an IBLND_MSG_PUT_[ACK|NAK]. This allows the sending peer LND to know that the PUT has been received, and let go of it's TX, as shown below. On receipt of the ACK|NAK, the peer sends a IBLND_MSG_PUT_DONE, and initates the RDMA operation. Once the tx completes, kiblnd_tx_done() is called which will then call lnet_finalize(). For the PUT, LNet will end sending an LNET_MSG_ACK, if it needs to (look at lnet_parse_put() for the condition on which LNET_MSG_ACK is sent).

In the case of a GET, on receipt of IBLND_MSG_GET_REQ, lnet_parse() -> lnet_parse_get() -> kiblnd_recv(). If a there is data to be sent back, then the LND sends and RDMA operation with IBLND_MSG_GET_DONE, or just the DONE.

The point I'm trying to illustrate here is that there are two levels of messages. There are the LND messages which confirm that a single LNET message has been received by the peer. And there there are the LNet level messages, such as LNET_MSG_ACK and LNET_MSG_REPLY. These two in particular are in response to the LNET_MSG_PUT and LNET_MSG_GET respectively. At the LND level IBLND_MSG_IMMEDIATE is used.

In a routed configuration, the entire LND handshake between the peer and the router is completed. However the LNET level messages like LNET_MSG_ACK and LNET_MSG_REPLY are sent by the final destination, and not by the router. The router simply forwards on the message it receives.

The question that the design needs to answer is this: Should LNet be concerned with resending messages if LNET_MSG_ACK or LNET_MSG_REPLY are not received for LNET_MSG_PUT and LNET_MSG_GET respectively?

At this point (pending further discussion) it is my opinion that it should not. I argue that the decision to get LNET to send the LNET_MSG_ACK or LNET_MSG_REPLY implicitly is actually a poor one. These messages are in direct respons to direct requests by upper layers like RPC. What should've been happening is that when LNET receives an LNET_MSG_[PUT|GET], an event should be generated to the requesting layer, and the requesting layer should be doing another call to LNet, to send the LNET_MSG_[ACK|REPLY]. Maybe it was done

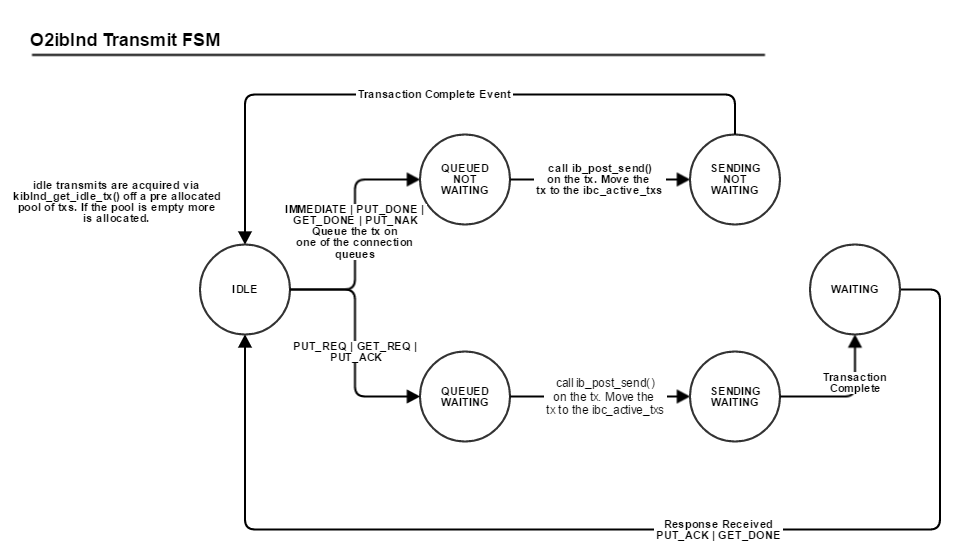

O2IBLND TX Lifecycle

In order to understand fully how the LND transmit timeout can be used for resends, we need to have an understanding of the transmit life cycle shown above.

This shows that the timeout depends on the type of request being sent. If the request expects a response back then the tx_timeout covers the entire transaction lifetime. Otherwise it covers up until the transmit complete event is queued on the completion queue.

Currently, if the transmit timeout is triggered the connection is closed to ensure that all RDMA operations have ceased. LNet is notified on error and if the modprobe parameter auto_down is set (which it is by default) the peer is marked down. In lnet_select_pathway() lnet_post_send_locked() is called. One of the checks it does is to make sure that the peer we're trying to send to is alive. If not, message is dropped and -EHOSTUNREACH is returned up the call chain.

In lnet_select_pathway() if lnet_post_send_locked() fails, then we ought to marke the health of the peer and attempt to select a different peer_ni to send to.

NOTE, currently we don't know why the peer_ni is marked down. As mentioned above the tx_timeout could be triggered for several reasons. Some reasons indicate a problem on the peer side, IE not receiving a response or a transmit complete. Other reasons could indicate local problems, for example the tx never leaves the queued state. Depending on the reason for the tx_timeout LNet should react differently in it's next round of interface selection.

Peer timeout and recovery model
Health Revisited

There are different scenarios to consider with Health:

  1. Asynchronous events which indicate that the card is down
  2. Immediate failures when sending
      1. Failures reported by the LND
    2. Failures that occur because peer is down. Although this class of failures could be moved into the selection algorithm. IE do not pick peers_nis which are not alive.
  3. TX timeout cases.
    1. Currently connection is closed and peer is marked down.
    2. This behavior should be enhanced to attempt to resend on a different local NI/peer NI, and mark the health of the NI
TX Timeouts in the presence of LNet Routers

Communication with a router adheres to the above details. Once the current hop is sure that the message has made it to the next hop, LNet shouldn't worry about resends. Resends are only to ensure that the message LNet is tasked to send makes it to the next hop. The upper layer RPC protocol makes sure that RPC messages are retried if necessary.

Each hop's LNet will do a best effort in getting the message to the following hop. Unfortunately, there is no feedback mechanism from a router to the originator to inform the originator that a message has failed to send, but I believe this is unnecessary and will probably increase the complexity of the code and the system in general. Rule of thumb should be that each hop only worries about the immediate next hop.
